Технические характеристики
| Mounting | Quasi -flush |
| Rated distance [Sn] | 15mm |
| Assured distance [Sa] | 0…12mm |
| Dimensions | M30*63mm |
| Output | NO |
| Supply voltage | 10…30 VDC |
| Standard target | Fe 45*45*1tFe 66*66*1t |
| Switch-point drifts [%/Sr] | ≤±10% |
| Hysteresis range [%/Sr] | 1…20% |
| Repeat accuracy [R] | ≤3% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Consumption current | ≤15mA |
| Circuit protection | Short-circuit, overload and reverse polarity |
| Output indicator | Yellow LED |
| Ambient temperature | -25℃…70℃ |
| Ambient humidity | 35-95%RH |
| Switching frequency [F] | 300 Hz 150 Hz |
| Voltage withstand | 1000V/AC 50/60Hz 60S |
| Insulation resistance | ≥50MΩ (500VDC) |
| Vibration resistance | 10…50Hz (1.5mm) |
| Degree of protection | IP67 |
| Housing material | Nickel-copper alloy |
| Connection type | Кабель PVC 2 м |

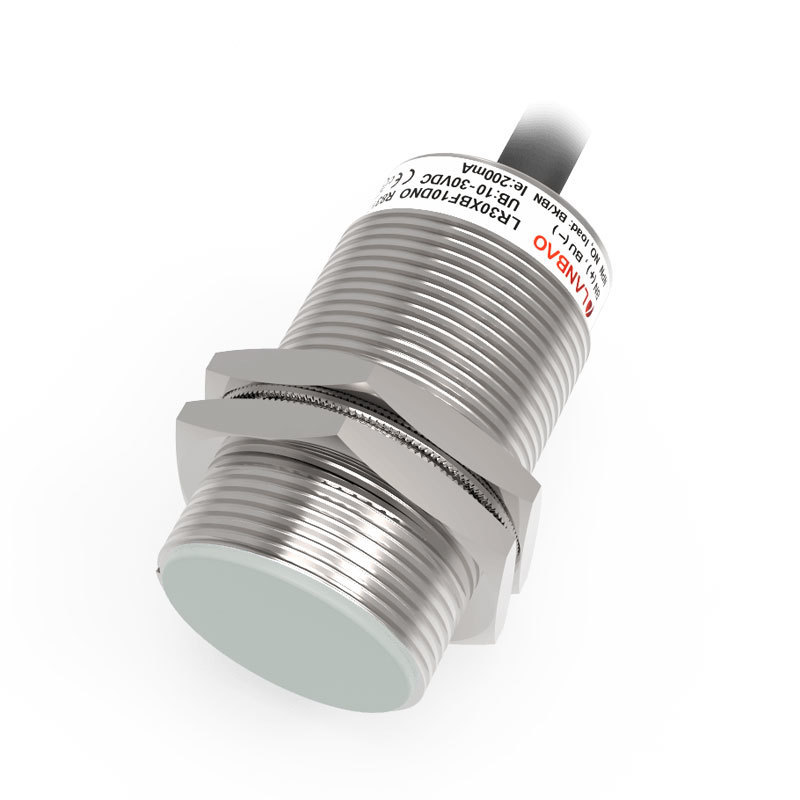

| LR30XBF15DNOY |
