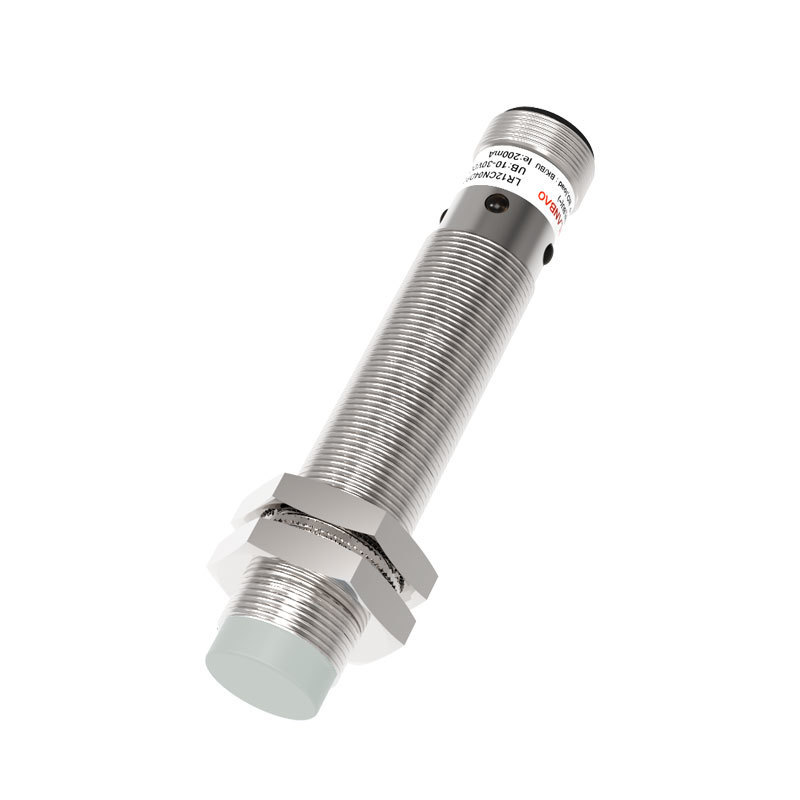

Standard function type inductive sensors LR12X series. Non contact detection, safe and reliable;ASIC design; Perfect choice for metallic targets detection;
| Mounting |
Nonflush |
| Rated distance [Sn] |
4mm |
| Assured distance [Sa] |
0…3.2mm |
| Dimensions |
M12*51mm/M12*55mm/M12*63mm/M12*67 mm |
| Output |
NO |
| Supply voltage |
10…30 VDC |
| Standard target |
Fe 12*12*1t |
| Switch-point drifts [%/Sr] |
≤±10% |
| Hysteresis range [%/Sr] |
1…20% |
| Repeat accuracy [R] |
≤3% |
| Load current |
≤200mA |
| Residual voltage |
≤2.5V |
| Leakage current |
≤15mA |
| Circuit protection |
Overload,short-circuit,and reverse polarity protection |
| Output indicator |
Yellow LED |
| Ambient temperature |
-25℃…70℃ |
| Ambient humidity |
35-95%RH |
| Switching frequency [F] |
1500 Hz/1000 Hz |
| Voltage withstand |
1000V/AC 50/60Hz 60s |
| Insulation resistance |
≥50MΩ(500VDC) |
| Vibration resistance |
10…50Hz (1.5mm) |
| Degree of protection |
IP67 |
| Housing material |
Nickel-copper alloy |
| Connection type |
2m PVC cable/M12 connector |
