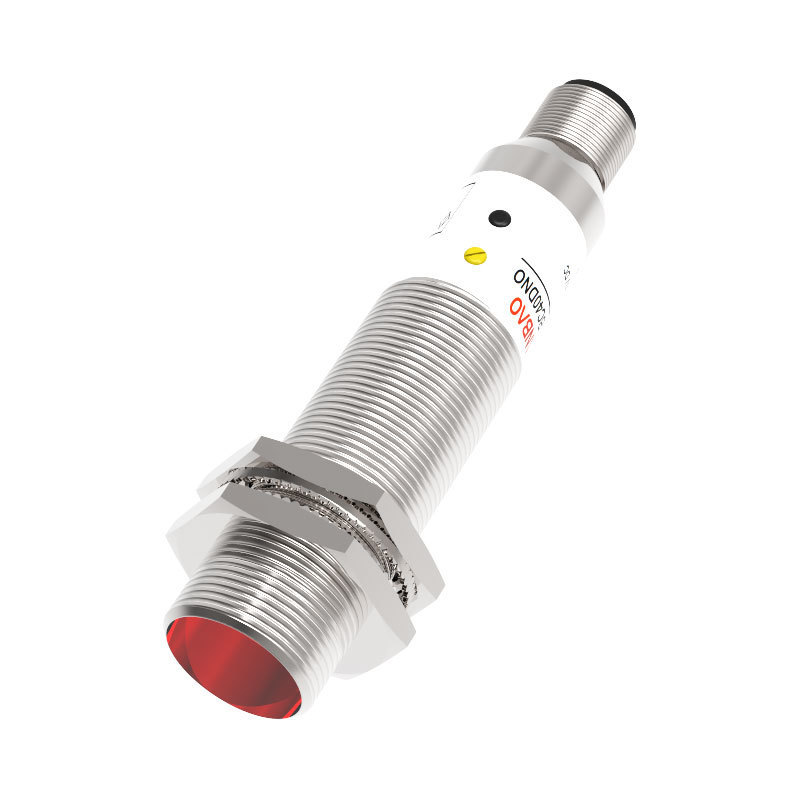

Metal cylindrical shape photoelectric sensors PR18-YC series, M18, Background suppression，Sn：10cm (adjustable), 10…30 VDC，PNP，NO+NC, M12 connector. Features: Emitter and receiver built in one housing, sensing distance adjustable; Special optic design, regardless background; Super anti-interference to ambient light;
| Detection type |
Background suppression |
| Rated distance [Sn] |
10cm (adjustable) |
| Standard target |
Reflection rate: White 90% Black:10% |
| Light source |
Red LED (680nm) |
| Dimensions |
M18*73.3mm M18*86.6mm |
| Output |
NO+NC |
| Supply voltage |
10...30 VDC |
| WH&BK color variation |
≤10% |
| Hysteresis range [%/Sr] |
≤5% |
| Repeat accuracy [R] |
≤3% |
| Load current |
≤200mA |
| Residual voltage |
≤2.5V |
| Consumption current |
≤35mA |
| Circuit protection |
Short-circuit, overload and reverse polarity |
| Response time |
＜2ms |
| Output indicator |
Yellow LED |
| Ambient temperature |
-15°C...+55°C |
| Ambient humidity |
35-85%RH(non-condensing) |
| Voltage withstand |
1000V/AC 50/60Hz 60s |
| Insulation resistance |
≥50MΩ(500VDC) |
| Vibration resistance |
10...50Hz (0.5mm) |
| Degree of protection |
IP67 |
| Housing material |
Nickel-copper alloy |
| Connection type |
2m PVC cable or M12 connector |
