c.pCOe expansion card CAREL P+E0000000000: Basic version

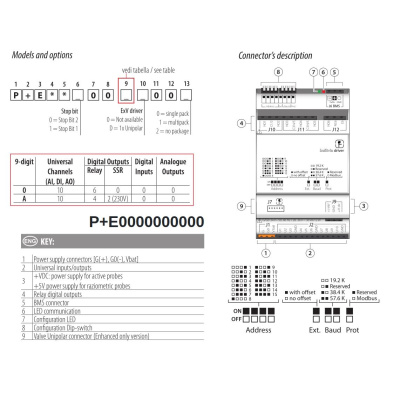

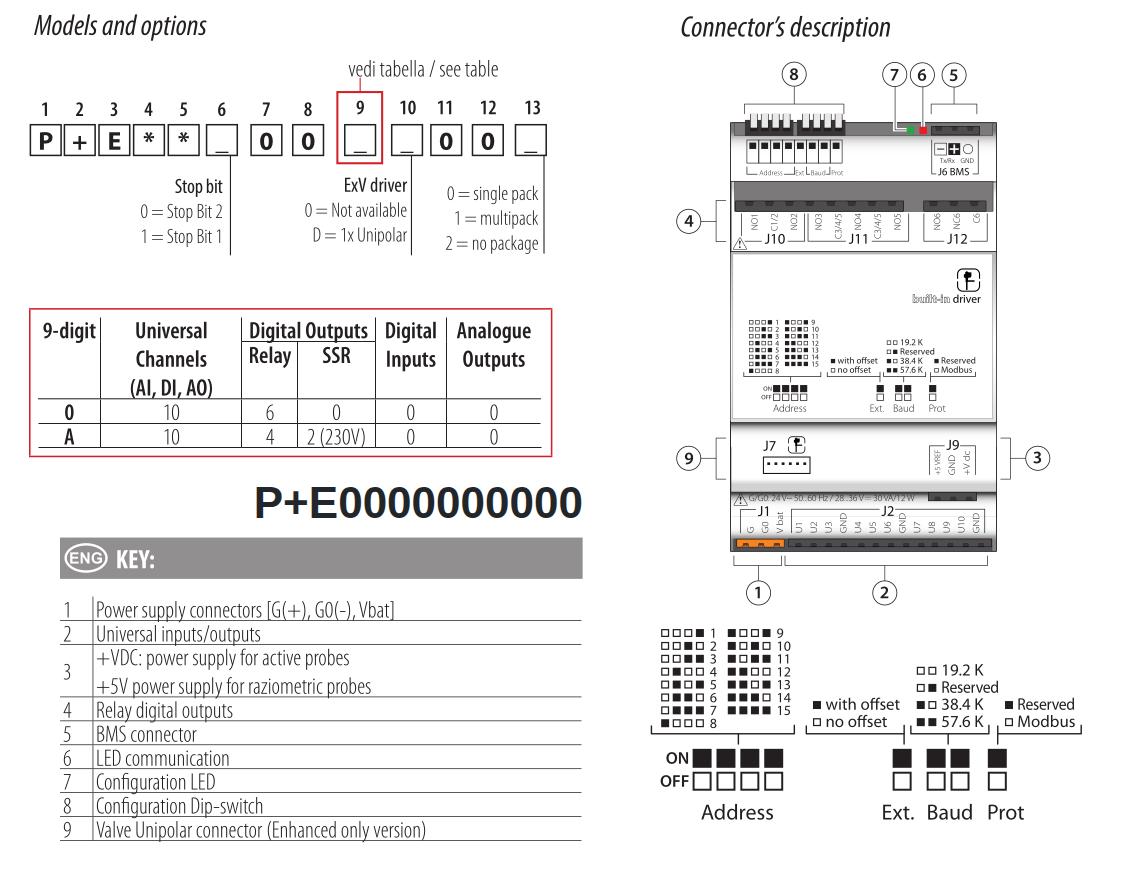

P+E* is an expansion module developed for CAREL controllers applications. It provides significant flexibility, allowing optimum use of all its inputs and outputs. The universal inputs/outputs (marked as U in the connection diagram) can be configured in the application program on the controller that manage the expansion, to connect active and passive probes, digital inputs, analogue and PWM outputs. This allows additional input/output configurations, increasing the flexibility of the corresponding controller in different applications. The Enhanced version includes a driver for unipolar valve. For further information on the controller, see user manual “c.pCO sistema” (code +0300057EN).

I/O Specifications

Universal channels

• Analogue/digital conversion: 14-bit
• Type of input selectable from application program: NTC, PT1000, PT500, PT100, 4 to 20 mA, 0 to 1 V, 0 to 5 V, 0 to 10 V, 0 to 2 kHz (resolution ±1Hz) on/off or open collector digital input (Rpullup 2 kOhm)
• Type of output selec. from application program: PWM 0/3.3 V 100 Hz, PWM 0/3.3 V, 2 mA 2 kHz, 0 to 10 V analogue output
• Maximum current output 2 mA
• Number of universal channels (U): 10
• Precision of analogue input reading: ± 0.3% of full scale
• Analogue output precision: ± 2% of full scale
• Maximum connection cable length: less than 10 m

Digital outputs

• Gruppo 1 (R1, R2) - J10 / Gruppo 2 (R3, R4, R5) - J11 = NO, 2(1)A, 250Vac, 100k cycles
• Gruppo 3 (R6) - J12 = NO, 1(1)A, 250Vac, 100k cycles
• Between Group 1 and Group 2 there is basic insulation.
• Switchable power R2, R5 with SSR assembly: 15 VA 110/230 Vac.
• Group 3 has reinforced insulation from the two other groups and consequently a different power supply can be used.
• Maximum connection cable length: less than 30 m

Controller electrical and physical specifications

Power supply

• Power supply to the product between G and G0: 24 Vac +10%/-15% 50/60 Hz, 28 to 36 Vdc +10% to -15%;
• Power supply to the product between G0 and Vbat: +18Vdc only for power supply from the Ultracap module (EVD0000UC0).
• Basic model maximum power consumption: 15 VA/6W.
• Reinforced insulation between main power supply and controller guaranteed by the safety power transformer (IEC61558-2-6).
• Protection against short-circuits: external 2.5 AT fuse (IEC60127-1).
• Maximum connector voltage (NO1…C6): 250 Vac;
• Minimum size of digital output wires: 1.5 mm2
• Minimum size of all other connector wires: 0.5 mm2

Removable connectors kit

• Basic model require the removable screw connectors kit code: P+D0CON0B0.
• Tightening torque: 0.2 Nm for 3,81 connectors
• Tightening torque: 0.4 Nm for 5.08 connectors

IMPORTANT: Power supply to the product must only be connected between G and G0. The Vbat terminal is only used for connection to the Ultracap module as emergency power supply in the event of power failures

Power supplied by the product

• Type: +Vdc for external probe, +5 Vref for external probe;
• Rated voltage +Vdc: 12 Vdc ±8%
• Max current available +Vdc: 50 mA, prot. against short-circuits
• Rated voltage +5Vref: 5 Vdc ±3%
• Max. current available (+5 Vref): 50 mA, protected against short-circuits
• Maximum connection cable length: less than 10 m

Communication lines available

• 1 RS485 Slave line, not opto-isolated for BMS port.
• Support Modbus protocol and CAREL (Basic model only).

Meaning of the LEDs

• Yellow LED: flashing when setting the address (setting the offset); on in the event of incorrect address setting.
• Green LED: flashing if BMS port communication online, on steady if offline.

Operating conditions

• Storage: -40T70 °C, 90% rH non-condensing
• Operation: -40T70 °C, 90% rH non-condensing

Physical specifications

• Dimensions: 4 DIN rail modules, 70 x 110 x 60 mm
• Mounting: fitted on DIN rail in accordance with DIN 43880 CEI EN 50022

Other specifications

The I/Os expansions are:

• compliant with IEC 60335-2-40:2018 when used with A2L refrigerants (e.g., R32); specifically, the electrical components that may act as potential ignition sources during normal operation comply with Annex JJ, and the maximum surface temperature of all components does not exceed the limits specified in Annex BB for A2L refrigerants, reduced by 100K, under normal operating conditions.
• classified under UL Category Control Number (CCN) LZGH2/8, in accordance with UL 60335-2-40 (Edition 4, Revision Date December 15, 2022; Annex JJ only) and CSA C22.2 No. 60335-2-40 (Edition 4, Revision Date December 15, 2022; Annex JJ only), when used with A2L refrigerants.
• Environmental pollution: level 3
• Ingress protection: IP40 front panel, IP10 remaining parts.
• Class of protection against electric shock: to be integrated into Class I and/or II appliances
• Material: technopolymer
• Flammability: V2 (UL94) and 850 °C (in accordance with IEC 60695-2-11)
• PTI of the PCB insulating materials: PTI250;
• Insulating material: PTI 175
• Colour: white RAL 9016
• Ball pressure test temperature: 125 °C
• Period of stress across the insulating parts: long
• Type of action digital output: 1C
• Type of disconnection or microswitching: microswitching
• Heat and fire resistance category: category D (UL94 - V2)
• Overvoltage category: category III
• Software class and structure: Class A
• Do not touch or tamper with the device when powered.
