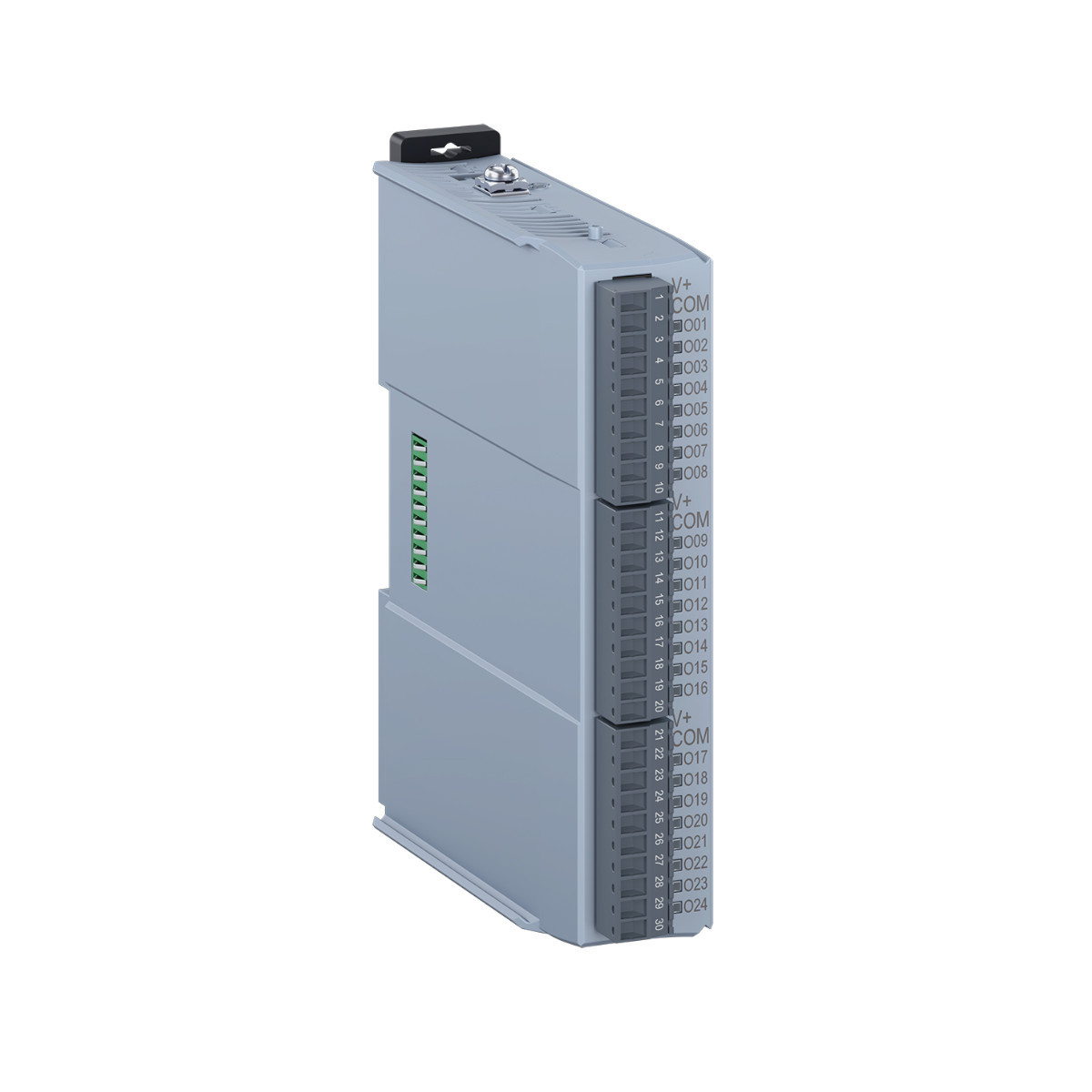

Модуль расширения WEG MOD1.10-24DO: 24 NPN isolated digital transistor outputs (500 mA)

MOD1.10 has 24 own isolated and protected digital outputs. The digital output circuit must be powered externally by a 24 Vdc power supply connected to the V+ (pins 1, 11 and 21) and COM (pins 2, 12 and 22) of the I/O connectors.

The outputs are PNP (activate the load connected to the negative of the power supply) and can supply a current of up to 500 mA each.

For that connector, use AWG 30-16 cables.
